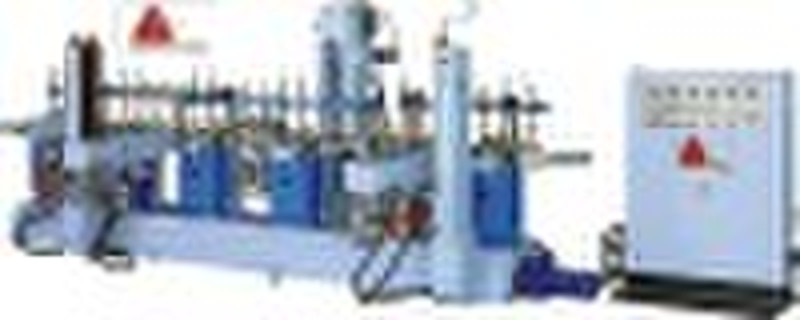

MM-S3W2 line profile sander

MM-S3W2 line profile sander Feature 1.Suitable for sanding beeline or L shape wood linear and three face; 2.The belt speed andfeeding are steplss, which is suitable ffor a variety of wood sanding; 3.The machie can be adjusted manually, and the adjustment is quick and easy; 4.The binder adopts poimt-poimt at each binder ,suitable for sanding of irregular surface of materials. SPECIFICATION: Min length of workpiece600mmThickness range of workpiece10 70mmTriangle-sanding unit max sanding width60mmMax sanding width80mmFeeding motor380V,50Hz,1.5KW,190-950r/minMAX.Feeding speed50m/minTriangle-sanding unit motor3PCS,380V,50Hz,2.2KW,1410r/minTriangle-sanding unit tilting motor3PCS,380V,50Hz,0.12KW,1400r/minSanding belt standard of triangle-sanding unit (girth X width)2060X(60 80)mmSanding belt linear velocity of triangle-sanding unit8.15 13.58m/s(30Hz 50Hz)Sanding belt pneumatic pressure0.3 0.4MPaSanding pad pneumatic pressure0.5 0.6MPaSanding head motor2PCS,380V,50Hz,2.2KW,1410r/minSanding belt standard of sanding belt (girth X width)840X100mmSanding belt linear velocity of sanding head8 13m/s(30Hz 50Hz)Tilting angle of sanding head-90° +90°Total power of motor12.86KWDimension5000mmX1000mmX1500mmWeight2400kg SANDING SAMPLE: MM-S3W2
